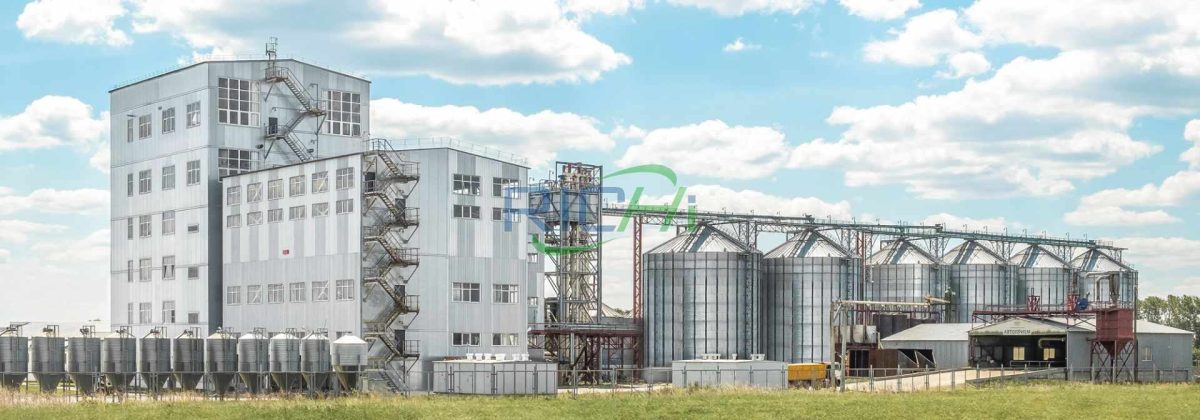

This is a 6-7t/h fish feed manufacturing plant in USA. The customer is a traditional feed processing enterprise. The company covers an area of 2,000 square meters and produces 8,000t/a of chicken, pig, duck and fish powder feed; 20,000t/a of chicken, pig, duck and fish series formula feed; 15,000t/a of extruded feed. The company has 75 employees, none of whom live and eat in the factory, work 300 days a year, and work 8 hours a day.
Due to the development needs of the company, the customer carried out a renovation and expansion project in the existing factory area. The construction content of this expansion project is as follows:
- ① Dismantle the production line with an annual output of 8,000t/a of chicken, pig, duck and fish powder feed, and build a new production line with an annual output of 50,000t/a of extruded feed;
- ② Corresponding to the content of the expanded production line, new raw materials and production equipment are added;
- ③ Add 10 new employees, all of whom live and eat in the factory area;
- ④ New investment of 690,000 US dollars.
After the renovation and expansion, covering an area of 18,000m2, with an annual output of 20,000t/a of chicken, pig, duck and fish series formula feed; 65,000t/a of extruded feed. The project has a total of 85 employees, of which 75 do not eat and stay in the factory, and 10 do. They work 300 days a year and 24 hours a day.
In this fish feed manufacturing plant in USA project, the original powder line is dismantled by the customer. According to the factory structure provided by the customer, RICHI MACHINERY provides the customer with the equipment layout, process flow design and a full set of equipment for this new fish feed production line project.
Product plan
The product plan before and after the fish feed manufacturing plant in USA project renovation and expansion is detailed in the table below.
| Product plan | Before renovation and expansion(t/a) | After renovation and expansion(t/a) | Changes(t/a) | Remarks | |
| Powdered feed | Pig feed | 4000 | 0 | -4000 | 8000t/a production line |
| Chicken and duck feed | 3000 | 0 | -3000 | ||
| Fish feed | 1000 | 0 | -1000 | ||
| Compound feed | Pig series formula feed | 14000 | 14000 | 0 | Original 10t/h livestock and poultry feed production line (capacity 20000t/a) |
| Chicken series formula feed | 2000 | 2000 | 0 | ||
| Duck series formula feed | 2000 | 2000 | 0 | ||
| Shenyu series formula feed | 2000 | 2000 | 0 | ||
| Extruded feed | 15000 | 65000 | 50000 | Original 5t/h expanded feed production line (capacity 15000t/a); the newly added 50000t/a expanded feed production line in this expansion project | |
Project composition
This fish feed manufacturing plant in USA project mainly dismantles the production line with an annual output of 8,000t/a for chicken, pig, duck and fish feed, and builds a new production line with an annual output of 50,000t/a for extruded feed. The new production line is located in the west area of the factory. The project composition of this expansion project is shown in the table below.
| Composition | Construction content | |
| Main engineering | Workshop 1 | has 4 floors, covers an area of 283.5 square meters, and has a production line of 8,000 t/a for chicken, pig, duck and fish feed. This expansion project will dismantle the 8,000 t/a production line for chicken, pig, duck and fish feed and add a 50,000 t/a expanded feed production line. |
| Workshop 2 | has 4 floors, covers an area of 228.8 square meters, and has a 10 t/h livestock and poultry feed production line (capacity 20,000 t/a). | |
| Workshop 3 | There are 4 floors, covering an area of 264.6 square meters, with a 5t/h extruded feed production line (capacity 15000t/a). | |
| Storage and transportation engineering | Finished product warehouse | 2 finished product warehouses, covering a total area of 1361.2 square meters, mainly used to store finished products. |
| Raw material warehouse | 3 raw material warehouses, covering a total area of 1661.8 square meters, mainly used to store raw materials. | |
| 2 raw material silos | The specifications of the two material silos are the same, with a diameter of 13 meters and a height of 10 meters. They store corn with a maximum storage capacity of 1300 tons. | |
| General warehouses | 2, with a total area of 584.04 square meters, mainly used to store packaging bags and other materials used in the production process. | |
| Auxiliary engineering | Office building | A total of 2 floors, covering an area of 160m2, mainly used for employee administrative offices. |
| Canteen | Occupies an area of 56m2, mainly used for employee dining. | |
| Staff dormitory | Occupies an area of 80m2, mainly used for employee accommodation. | |
| Boiler room | The project is equipped with a 6t/h steam boiler, which uses biomass fuel | |
| Public engineering | Power supply | Municipal power supply |
| Steam | The project is equipped with a 6t/h steam boiler, which uses biomass fuel | |
| Water supply | Municipal water supply | |
| Drainage | Rainwater and sewage are separated, and domestic sewage is treated in septic tanks and grease traps and reused for irrigation of agricultural and forestry land around the project, and is not discharged externally. | |
Consumption of raw and auxiliary materials
The consumption of raw and auxiliary materials before and after the renovation and expansion of this fish feed manufacturing plant in USA project is detailed in the table below.
| No. | Raw and auxiliary materials | Annual usage( t/a) | Maximum storage capacity(t) | ||
| Before renovation and expansion | After renovation and expansion | Changes | |||
| 1 | Corn | 20300 | 25300 | +5000 | 1054 |
| 2 | Soybean meal | 7400 | 19900 | +12500 | 829 |
| 3 | Wheat skin | 5400 | 10400 | +5000 | 433 |
| 4 | Wheat | 2500 | 7500 | +5000 | 313 |
| 5 | wheat middlings | 3500 | 8500 | +5000 | 354 |
| 6 | Flour | 1500 | 6500 | +5000 | 271 |
| 7 | Rapeseed meal | 2500 | 12500 | +10000 | 521 |
| 8 | Oil substances/additives | 350 | 2850 | +2500 | 119 |
Note: Oil substances and additives mainly refer to nutrients such as vegetable oil, fish oil, animal oil, etc. required for animal growth.
equipment for fish feed manufacturing plant in USA
The main production equipment before and after the renovation and expansion of this fish feed manufacturing plant in USA project is detailed in the table below.
| No. | Equipment Name | Before Expansion | After Expansion | Changes | Remarks | |
| 1 | Chicken, Pig, Duck, Fish Feed 8000t/a Production Line | 1 | 0 | -1 | 8000t/a Production Line, which will be dismantled in this expansion project | |
| 2 | Scraper | 2 | 2 | 0 | ||
| 3 | Bucket elevator | 6 | 6 | 0 | ||
| 4 | Screw conveyor | 16 | 16 | 0 | ||
| 5 | Mixer | 1 | 1 | 0 | ||
| 6 | Pulverizer | 3 | 3 | 0 | ||
| 7 | Pelletizer | 1 | 1 | 0 | Original 10t/h livestock and poultry feed production line (capacity 20000t/a) | |
| 8 | Cooler fan | 1 | 1 | 0 | ||
| 9 | Air shut-off | 2 | 2 | 0 | ||
| 10 | Feeding screw machine | 3 | 3 | 0 | ||
| 11 | Pulse dust collector | 5 | 5 | 0 | ||
| 12 | Batching screw machine | 18 | 18 | 0 | ||
| 13 | Bucket elevator | 5 | 5 | 0 | ||
| 14 | Screw conveyor | 8 | 8 | 0 | ||
| 15 | Mixer | 2 | 2 | 0 | ||
| 16 | Crusher | 1 | 1 | 0 | ||
| 17 | Blower | 5 | 5 | 0 | Original 5t/h extruded feed production line (capacity 15000t/a） | |
| 18 | Air shut-off device | 4 | 4 | 0 | ||
| 19 | Speed-adjusting feeder | 1 | 1 | 0 | ||
| 20 | Pulse cyclone dust collector | 5 | 5 | 0 | ||
| 21 | Drying air net | 1 | 1 | 0 | ||
| 22 | Raw material bulk system | 0 | 1 | 1 | 50000t/a expanded material production line added in this expansion project | |
| 23 | Raw material receiving system | 0 | 1 | 1 | ||
| 24 | Coarse grinding system | 0 | 1 | 1 | ||
| 25 | Matching and mixing system | 0 | 1 | 1 | ||
| 26 | Micro-grinding and ultra-micro-grinding system | 0 | 1 | 1 | ||
| 27 | Puffing and drying system | 0 | 1 | 1 | ||
| 28 | Other | Rotary feeder | 0 | 1 | 1 | |
| 29 | Broken arch feeder | 0 | 1 | 1 | ||
| 30 | High-speed single-shaft conditioner | 0 | 1 | 1 | ||
| 31 | Differential conditioner | 0 | 1 | 1 | ||
| 32 | Twin-screw extruder Machine | 0 | 1 | 1 | ||
| 33 | On-site control box | 0 | 1 | 1 | ||
| 34 | Inverter | 0 | 1 | 1 | ||
| 35 | Steam valve parts | 0 | 1 | 1 | ||
| 36 | Positive pressure density controller | 0 | 1 | 1 | ||
| 37 | Injection system | 0 | 1 | 1 | ||
| 38 | It Middle | Waiting for spraying | 0 | 2 | 2 | |
| 39 | Upper material level device | 0 | 3 | 3 | ||
| 40 | Lower material level device | 0 | 3 | 3 | ||
| 41 | Vibration motor | 0 | 3 | 3 | ||
| 42 | Multi-stage feeding gate Door | 0 | 2 | 2 | ||
| 43 | Sprayer | 0 | 1 | 1 | ||
| 44 | On-site control box | 0 | 1 | 1 | ||
| 45 | Sprayer refueling system | 0 | 1 | 1 | ||
| 46 | Spraying rear chamber | 0 | 1 | 1 | ||
| 47 | Grading and packaging system | 0 | 1 | 1 | ||
| 48 | 6t/h steam boiler | 1 | 1 | 0 | Heating | |
Energy consumption
The energy consumption of this fish feed manufacturing plant in USA project before and after the expansion is detailed in the table below.
| Category | Before renovation and expansion | Change | After renovation and expansion | Purpose | Remarks | |
| Water supply | Life | 750t/a | +100t/a | 850t/a | Life | Municipal water supply |
| Production | 120t/a | 0t/a | 120t/a | Water film dust removal fresh water supplement | ||
| Electricity | 4.5 million kWh/year | +2 million kWh/year | 6.5 million kWh/year | Production and life | Municipal power supply | |
| Biomass fuel | 535t/a | +765t/a | 1300t/a | Boiler fuel | Purchased | |
Labor quota and work system
The labor quota and work system before and after the expansion of this fish feed manufacturing plant in USA project are detailed in the table below.
| No. | Project situation | Before renovation and expansion | After renovation and expansion | Changes |
| 1 | Number of employees | 75 | 85 | +10 |
| 2 | Food and lodging | None of them are lodged in the factory | 75 people are not lodged in the factory, | New employees are lodged in the factory |
| 10 people are lodged in the factory | ||||
| 3 | Work system | Three shift, 8 hours per shift, 300 working days per year | Three shift, 8 hours per shift, 300 working days per year | No change |
Production process
This fish feed manufacturing plant in USA project will build a new production line with an annual output of 50,000t/a of extruded feed. The feed production process of the feed factory is briefly described as follows.
- Raw material reception and cleaning: The main raw materials required for the floating fish feed production line project production during the operation period are transported into the factory area by car. When receiving the main raw materials, the raw materials that need to be crushed are screened to remove impurities. If unqualified raw materials are found during the raw material reception and cleaning process, they will be returned to the supplier.
- Raw material feeding: Solid raw materials are put into the production equipment, and a small amount of dust and noise are generated during feeding. The dust is collected and processed by the dust collector equipped with the production line.
- First crushing: After the raw materials are put into the equipment, they are crushed by the crusher.
- Mixing: According to the product formula requirements, various raw materials participating in the ingredients are weighed and put into the mixer in turn.
- Second crushing: The mixture is crushed for the second time, because the finer the particles, the larger their surface area, and the larger the contact area of the digestive fluid with them, thereby improving the digestibility of the feed and increasing its nutritional value.
- Second mixing: The raw materials that have been crushed for the second time are mixed again.
- Granulation (livestock and poultry feed and fish feed): The mixed raw materials enter the pelletizer, and the material temperature is adjusted to 80-85℃ by steam, and the water content of the material is about 10%, and then the pelletizer is used to make pellets of standard particle size.
- Extrusion and drying (extruded feed): The extrusion process mainly involves passing boiler steam into the puffer through the steam pipe to heat and puff the raw and auxiliary materials after the second mixing. Part of the steam enters the material, and part of the water vapor will mix with the odor of the material to produce a certain amount of steam odor exhaust gas. After the material is extruded in the floating fish feed extruder machine, it is loaded into the dryer for drying. The moisture content of the material after drying is about 2%, and a certain amount of steam odor will be generated during the drying process.
- Oil spraying: The semi-finished product after puffing enters the sprayer, and oily liquids such as grease, vitamins, antioxidants, and amino acids are sprayed on the surface of the pellet feed in batches.
- Cooling: After the oil spraying is completed, the material is sent to the cooler for cooling. According to the information provided by the construction party, this section is mainly closed production, and the production process is controlled by the control center, so there is no situation of manual opening of material valves and material leakage during the production process.
- Finished product classification: The cooled particles enter the finished product classification bin and are classified by the classification screen.
- Measuring, packaging and warehousing: The qualified products are measured and packaged, and then put into the warehouse for sale.
